Home Valves & Actuators Pressure & Temperature Control Valves Mixing Valves LF AQUA-GARD THERMOSTAT MIXING VLV 3/8

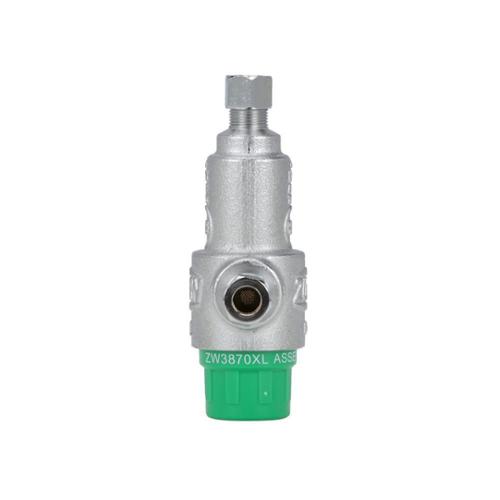

LF AQUA-GARD THERMOSTAT MIXING VLV 3/8

PART WILK ZW3870XLT
SUPPLIER Zurn® Wilkins
SUPPLIER PART # 38-ZW3870XLT
Calculating price...
QUANTITY

About this item

Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW3870XLT, 3/8 in Nominal, Compression, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 3.1 gpm Flow, Media: Water, 4-3/16 in Inlet to Outlet Length, 2-27/32 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube/Acetal Co-Polymer Checks, Nickel Plated, 4-27/32 in H

The Aqua-Gard® ZW3870XLT Thermostatic Mixing Valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.

ASTM B584|ASSE 1070|ASSE 1016|CSA Certified|ANSI/NSF 61-9
Body Material Cast Bronze
Dimensions 4-27/32 in H
End Style Compression
Finish Nickel Plated
Flow Capacity 3.1 gpm
Inlet to Outlet Length 4-3/16 in
Media Water
Nominal Size 3/8 in
Pressure Rating 145 psi
Series ZW3870XLT
Softgoods Material FKM Seal/Noryl GFN2 Guide Tube/Acetal Co-Polymer Checks
Temperature Rating 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply
Top to Inlet Center 2-27/32 in
Trim Material 300 Stainless Steel Spring
Brand Zurn® Wilkins
Warranty 1 Year
  • Most suitable for use with sensor faucets
  • Designed for single fixture use
  • 3.1 gpm flow rate at 45 psi pressure loss
