LF BFP RED PRESS 1 IP TEST COCKS UP

PART WILK 975XL2TCU-100
SUPPLIER Zurn® Wilkins
SUPPLIER PART # 1-975XL2TCU
Calculating price...
QUANTITY

About this item

Zurn® Wilkins, 1-975XL2TCU, Bronze Backflow Preventer, Series: 975XL2, 1 in Nominal, FNPT End Style, 175 psi Pressure, 125 lb Pressure Class, 180 deg F, Non-Rising Stem Gate Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Full Port, Media: Water, Bronze Body, Electrostatic Epoxy, Natural White, 17-3/8 in L Dimensions, Domestic

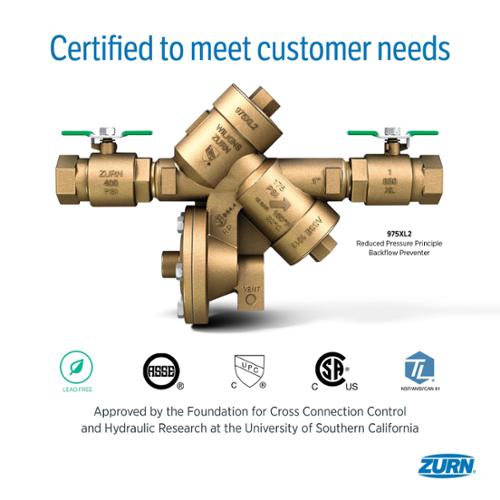

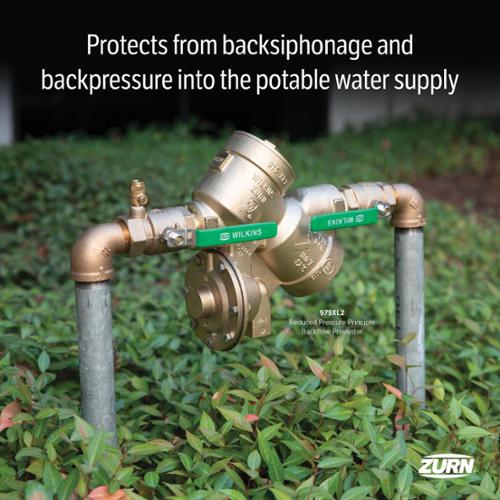

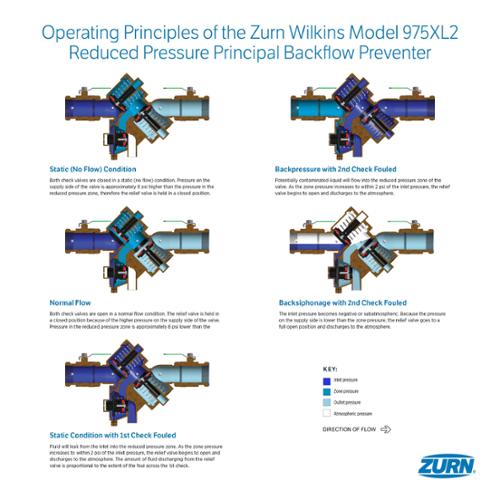

The Zurn® Wilkins 975XL2 Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. The wye pattern, bronze body provides separate access to each check valve and the relief valve for servicing.

Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California|ANSI B1.20.1|ASSE 1013|ASTM B584|AWWA C511|CSA B64.4|cUPC Listed|IAPMO R and T Listed|ANSI/NSF 372/67-G
Backflow Type Reduced Pressure
Ball Valve/Gate Valve Type Non-Rising Stem Gate Valve
Body Material Bronze
Color Natural White
Dimensions 17-3/8 in L
Domestic/Import Domestic
End Style FNPT
Finish Electrostatic Epoxy
Media Water
Nominal Size 1 in
Port Type Full
Pressure Class 125 lb
Pressure Rating 175 psi
Series 975XL2
Temperature Rating 180 deg F
Brand Zurn® Wilkins
Country of Origin US
Warranty Limited Warranty
  • Test cocks pointed up for easy installation close to a wall
  • Wye pattern design reduces installation time and costs
  • Entire unit serviceable in-line for high efficiency
