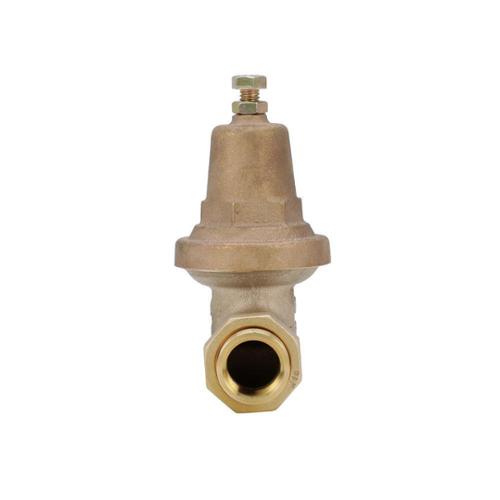

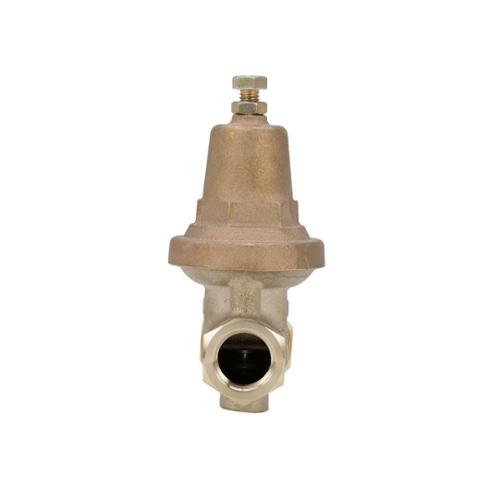

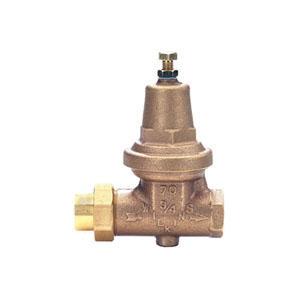

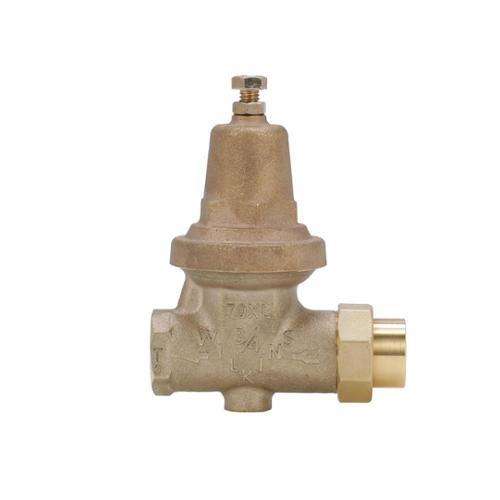

Zurn® Wilkins Water Pressure Reducing Valve, Single Union, Series: Model 70XL, 3/4 in Nominal Size, FNPT, 300 psi, 140 deg F, Media: Water, 6 in Inlet to Outlet Length, Cast Bronze Body, Stainless Steel Trim, Buna-N® Nitrile/EPDM Elastomer, 6 in H
The 3/4" 70XL Pressure Reducing Valve is a contractor favorite, providing a variety of residential and commercial customers with extreme stability, ruggedness, and ease of repair for more than 40 years. The 70XL features single union or double union connections, a cast bronze body and bell with stainless steel components, a 20-mesh strainer screen, and a unitized replaceable cartridge which reduces labor costs and time for required cleaning and maintenance. By installing the 70XL, you will conserve water and energy while protecting your water system, complying with plumbing codes, and ensuring ultimate safety.
ANSI B1.20.1/B16.22|ASSE® Listed 1003|ASTM B 584|City of Los Angeles Approved|CSA® Certified|IAPMO® Listed|ANSI/NSF 372|UPC Listed
Body Material
Cast Bronze
Dimensions
6 in H
End Style
FNPT
Inlet to Outlet Length
6 in
Media
Water
Nominal Size
3/4 in
Pressure Range
300 psi
Series
Model 70XL
Softgoods Material
Buna-N® Nitrile/EPDM Elastomer
Temperature Rating
140 deg F
Trim Material
Stainless Steel
Type
Single Union
Brand
Zurn® Wilkins
Country of Origin
TW
Warranty
Limited Warranty
Widest range of end connections provide easy installationCartridge design reduces labor costs and timeConserves water and energyLead-free bronze and composite construction offers corrosion-resistance
