PRV 25-75# SET @ 50 # 3/4 LF

PART WATS LFU5B-Z3-075
SUPPLIER WATTS®
SUPPLIER PART # 0009118
Calculating price...
QUANTITY

About this item

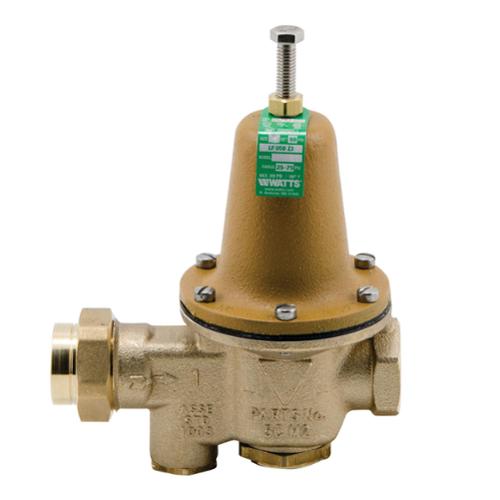

Constructed from lead-free materials, this pressure reducing valve effectively manages water pressure in your plumbing system. It features an adjustable pressure range from 25 to 75 psi, with a standard setting of 50 psi. Suitable for temperatures up to 160°F, it can handle initial pressures of up to 300 psi. The valve's design allows for quick and easy servicing without the need to remove it from the line, ensuring convenience and efficiency in maintenance.
Body Material Cast Copper Silicon Alloy
End Style FNPT
Inlet to Outlet Length 6-3/16 in
Media Water
Nominal Size 3/4 in
Pressure Range 25 to 75 psi
Series LFU5B-Z3
Softgoods Material Reinforced EPDM Diaphragm
Temperature Rating 33 to 160 deg F
Top to Inlet Center 6-7/8 in
Trim Material Stainless Steel
Type High Performance
Brand WATTS®
Country of Origin US
Warranty 1 Year Limited
  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
  • Serviceable in line without special tools
