TRAP PRIMER 1/2 IP LEAD FREE

PART WATS LFTP300T
SUPPLIER WATTS®
SUPPLIER PART # 0121238
Calculating price...
QUANTITY

About this item

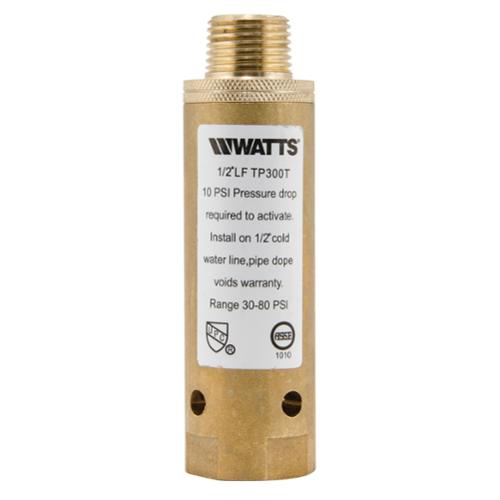

WATTS® Trap Primer, Series: LFTP300, 1/2 in Pipe, 4-5/16 in Length, MNPT x FNPT Connection, Brass, 1-1/4 in W Dimensions, Domestic/Import: Import

This 1/2 inch trap primer is installed in plumbing systems to prevent floor drain traps from losing their water seal by evaporation. It operates by sensing the pressure drop in the supply line from downstream fixtures or appliances. This trap primer features a lead free brass body with EDPM seals, built-in air gap, and 1/2 inch male NPT inlet by 1/2 inch female NPT outlet. The minimum supply pressure must exceed 25 psi (172 kPa) and the maximum supply pressure is 125 psi (8.6 bar).

ASSE 1018|CSA Certified|IAPMO Listed|SA B125.3 UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Connection MNPT x FNPT
Dimensions 1-1/4 in W
Domestic/Import Import
Length 4-5/16 in
Material Brass
Pipe Size 1/2 in
Series LFTP300
Brand WATTS®
Country of Origin CN
  • Prevents backflow of sewer gas into building
  • Built in vacuum breaker ports 6
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • EPDM seals
  • Must be installed on a cold water line serving a frequently used fixture
  • For proper trap priming, minimum flows must exceed those stated in the flow chart
  • Lead free brass construction
