Home Valves & Actuators Shut-Off Valves BRS BALL VLV FP 600# WOG 150# SWP 3/4 SWT LF

BRS BALL VLV FP 600# WOG 150# SWP 3/4 SWT LF

PART WATS LFFBVS-3C-075
SUPPLIER WATTS®
SUPPLIER PART # 0555111
Calculating price...
QUANTITY

About this item

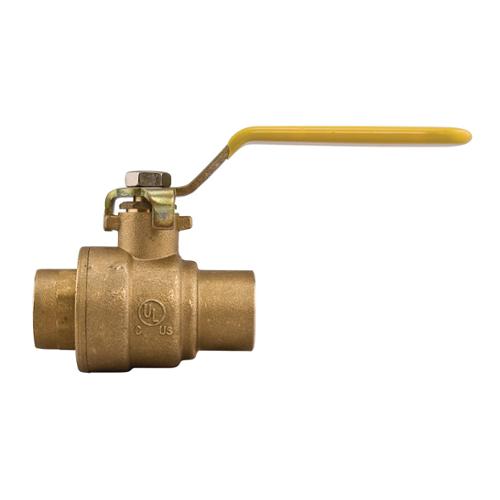

WATTS® Ball Valve, 2-Piece, 3/4 in Nominal, Solder End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 2-11/16 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Silicon Alloy Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/PTFE Softgoods, Import

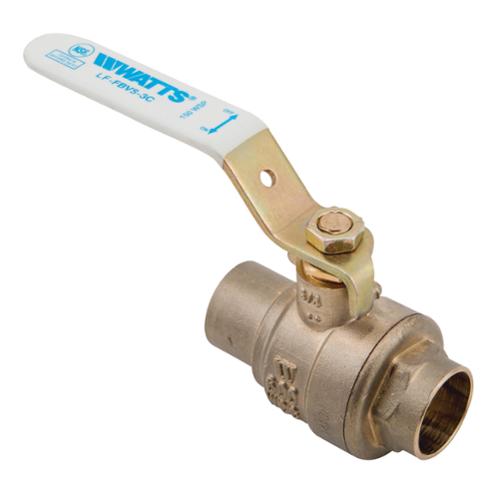

Series LFFBV-3C, LFFBVS-3C Lead Free 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, copper silicon alloy brass adapter, and steel handle. Model LFFBV-3C has threaded end connections. Model LFFBVS-3C has solder end connections.

CSA Certified|FM Approved|MSS-SP-110 Compliant|NSF/ANSI 61/8 Certified|UL Listed
Ball Material Chrome Plated Brass
Body Material Silicon Alloy
Domestic/Import Import
End Style Solder
Inlet to Outlet Length 2-11/16 in
Media Gas/Liquids
Nominal Size 3/4 in
Port Type Full
Pressure Rating 600 psi
Series LFFBVS-3C
Softgoods Material Fluorocarbon/PTFE
Temperature Rating -40 to 400 deg F
Top to Inlet Center 2-1/4 in
Trim Material Brass Stem and PTFE Seat
Type 2-Piece
Brand WATTS®
Country of Origin CN
Warranty 1 year Limited
  • Lead free forged copper silicon alloy body and adapter
  • Fluorocarbon elastomer stem O-Ring prevents stem leaks
  • Adjustable stem packing gland nut
  • Bottom loaded, blow-out proof stem
  • Machined chrome plated Lead free brass ball
  • 150 psi steam working pressure
  • Excessive heat can harm the seats
  • After soldering, the packing nut may have to be tightened
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Forged copper silicon alloy body
  • Fluorocarbon elastomer O-ring and PTFE stem packing seal/thrust washer
