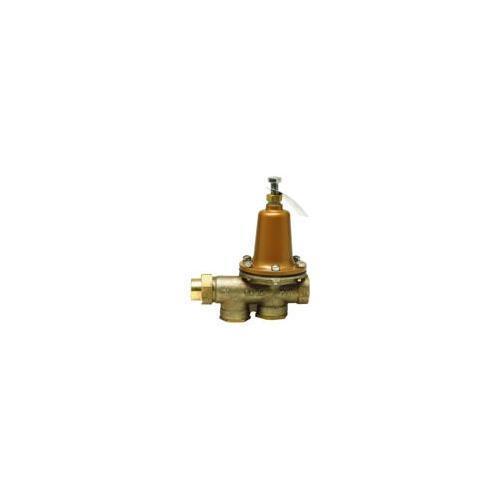

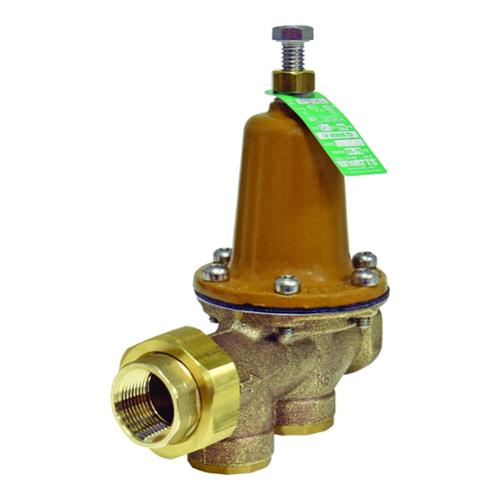

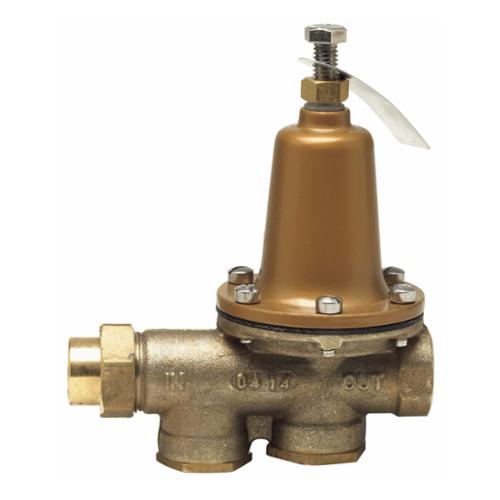

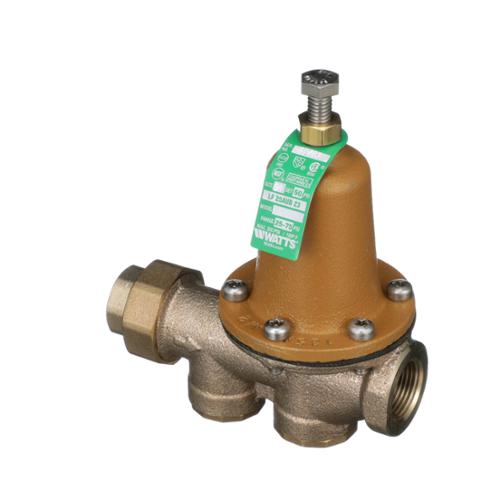

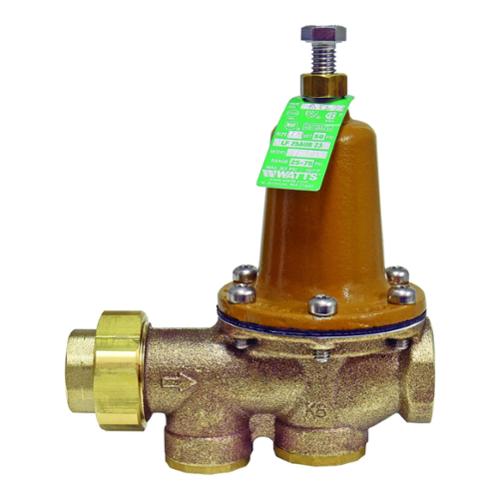

WATTS®, 0009257, Pressure Reducing Valve, Lead Free, Series: LF25AUB-Z3, 3/4 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 5-5/16 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat Softgoods

This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The standard pressure setting is 50 psi (345 kPa) with maximum working pressure at 300 psi (20.7 bar).

ANSI A112.26.2|ASSE Standard 1003|CSA Standard B356|IAPMO Listed|MIL-V-18146B Type I|NSF Approved|Southern Standard Plumbing Code|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
