GLASS FILLER 8 DECK MNT 1/2 NPT MALE SHANK

PART TSB B-1210

SUPPLIER T & S

SUPPLIER PART # B-1210

Calculating price...

QUANTITY

About this item

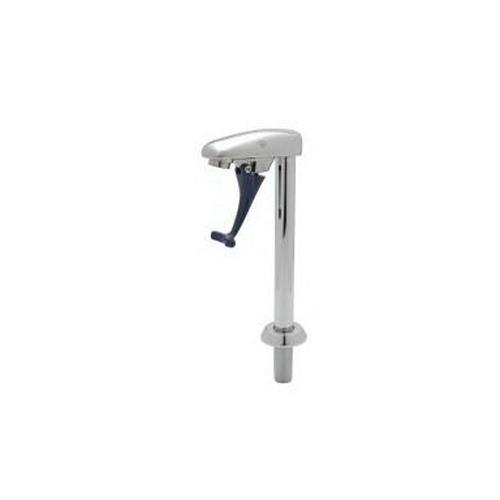

T & S Glass Filler, 2.25 gpm, Push Back Actuation Arm Handle, 1 Handles, Side Spray(Y/N): No, 1/2 in, MNPT, 1-1/8 in Maximum Deck Thickness, Deck Mount, 9-5/16 in H, Brass, Polished Chrome, Domestic

ANSI/ICC A117.1 (ADA)|ASME A112.18.1/CSA B125.1|BAA/ARRA Certification|City of Los Angeles|Commonwealth of Massachusetts|NSF 61-Section 9 and NSF 372

Connection Size 1/2 in

Connection Type MNPT

Dimensions 9-5/16 in H

Domestic/Import Domestic

Finish/Color Polished Chrome

Flow Rate 2.25 gpm

Handle Type Push Back Actuation Arm

Material Brass

Maximum Deck Thickness 1-1/8 in

Mounting Type Deck

Number of Handles 1

Side Spray(Y/N) No

Brand T & S

Country of Origin US

Warranty 1 Year Limited

Torx wrench adjustable flow outlet (wrench included)

Dark blue push back arm

Instantaneous shut-off

Chrome plated metal flange and thermoplastic arm

Low lead content (0.25% max)

Pedestal with adjustable 2 in dia flange

40 to 140 deg F rated operating

20 to 125 psi

Self-closing arm

8 in high deck mount glass filler

Specification Sheet

Warranty Information
