Home Faucets Bathroom Faucets EBF-650-BAT OPTIMA SENSOR LAV FCT 4CC

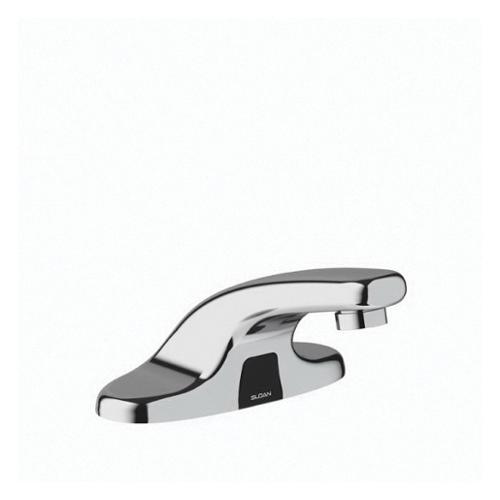

EBF-650-BAT OPTIMA SENSOR LAV FCT 4CC

PART SLO 3315025BT
SUPPLIER Sloan®
SUPPLIER PART # 3315025BT
Calculating price...
QUANTITY

About this item

Sloan® Electronic Sensor Activated Faucet, Series: EBF-650, Optima® Collection, 0.5 gpm Flow Rate, 4 in Center Distance, Low Integrated Spout, 4-9/16 in Spout Reach, 2-3/16 in Spout Height, Spray Pattern: Multi-Laminar, Deck Mounting, Solenoid Valve, 6-5/16 in L x 3-5/8 in H, Cast Brass, Polished Chrome, Import, Commercial

ADA Compliant|ASME A112.18.1|CEC Compliant|cUPC/UPC Listed|Low Lead Compliant|GPC 0.25 or Less Certified|TAS Compliant|UL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Center Distance 4 in
Collection Optima®
Commercial/Residential Commercial
Dimensions 6-5/16 in L x 3-5/8 in H
Domestic/Import Import
Finish/Color Polished Chrome
Flow Rate 0.5 gpm
Material Cast Brass
Mounting Type Deck
Series EBF-650
Spout Height 2-3/16 in
Spout Reach 4-9/16 in
Spout Type Low Integrated
Spray Pattern Multi-Laminar
Valve/Cartridge Type Solenoid Valve
Brand Sloan®
Country of Origin CN
Warranty 3 Years Limited
  • Splash-proof circuit control module
  • Sensor range adjustment screw
  • Low battery LED indicator light
  • User friendly variable time out settings
  • Serviceable filtered solenoid valve
  • Vandal resistant spray head with pressure compensating flow control
  • Metal jacketed wire protection for sensor lead
  • Cast brass spout
  • Quick connect fittings
  • Integrated water shut-off
  • Wireless settings adjustment
  • On-demand or metered activation
  • Hygienic line flush
  • Water usage and battery strength reporting
  • Self-adapting infrared sensor
  • Battery life - 3 years 8000 Cycles/month
  • 4 to 5 in sensor range
  • 1 to 14 in self adjustment range
  • 30 s timeout adjustment
  • Appropriate mounting hardware included
