Home Pipe, Tube & Hose Fittings Pipe Fittings OMNI CAST CPLG 4 NOM PIPE 4.80-5.10

OMNI CAST CPLG 4 NOM PIPE 4.80-5.10

PART SB 441-00000510-900
SUPPLIER Smith-Blair
SUPPLIER PART # 441-00000510-900
Calculating price...
QUANTITY

About this item

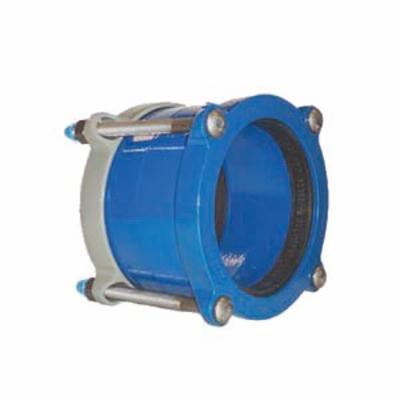

Smith-Blair OMNI™ Straight/Transition Coupling, Series: 441, Fitting/Connector Type: Coupling, 4 in Nominal, Up to 250 psi, Method of Manufacture: Cast, Ductile Iron, Flexi-Coat® Fusion Bonded Epoxy, 4.8 to 5.1 in OD End 1/End 2

Smith-Blair cast couplings include a versatile system of interchangeable coupling components designed to be lighter, with fewer parts, to reduce required inventories, minimize handling problems and improve installation time.

ASTM A536 Sleeve/Follower Flange|AWWA C219/ANSI A21.11 Bolts and Nut|AWWA C219|ASTM D2000 NSF/ANSI 61G Gasket|NSF/ANSI 61|NSF/ANSI 372|UL Listed
Dimensions 4.8 to 5.1 in OD End 1/End 2
Finish Flexi-Coat® Fusion Bonded Epoxy
Fitting/Connector Type Coupling
Material Ductile Iron
Method of Manufacture Cast
Nominal Size 4 in
Pressure Rating Up to 250 psi
Series 441
Brand Smith-Blair
Warranty 1 Year Limited
  • Heavy cast ductile Iron parts for long life
  • Flanges and gaskets can be mixed and matched on the same size nominal sleeve
  • Most couplings are stab fit, making installation a breeze, no disassembly is required
  • One sleeve per nominal pipe size takes the guess work out of deciding which sleeve size to choose
  • Flanges are color coded by pipe type: Red for iron pipe size OD, blue for ductile OD and gray for asbestos cement OD
  • Gaskets and flanges are permanently marked with a part number and range to facilitate proper selection
