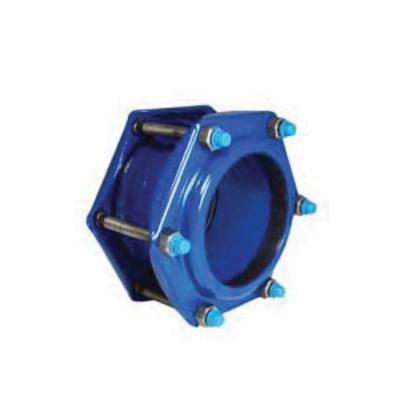

DRESSER COUPLING #38 8-IN 6 BOLT 10 LGTH

PART SB 411-90086303-003

SUPPLIER Smith-Blair

SUPPLIER PART # 411-90086303-003

Calculating price...

QUANTITY

About this item

Smith-Blair Straight Coupling, Series: 411, Fitting/Connector Type: Coupling, 8 in Nominal, Upto 150 psi, Method of Manufacture: Fabricated, Carbon Steel, Epoxy Coated, -20 to 180 deg F, 8.63 in OD

ASTM A283C Sleeve|ASTM D2000 Gasket|AWWA C219/C213|ASTM A1011 Follower|NSF/ANSI 61/372|UL Listed

Dimensions 8.63 in OD

Finish Epoxy Coated

Fitting/Connector Type Coupling

Material Carbon Steel

Method of Manufacture Fabricated

Nominal Size 8 in

Pressure Rating Upto 150 psi

Series 411

Temperature Rating -20 to 180 deg F

Brand Smith-Blair

Warranty 1 Year Limited

Allows for limited expansion and contraction

Will dampen vibration to reduce pipe fatigue

Easy to install, no special pipe end preparation required

Most sizes will accommodate anchor studs to restrain the joints

Can be custom made to fit odd OD's or other unusual applications

Provided with or without pipe stops to accommodate customer needs

Has good deflection capabilities, allows change in piping direction without the need of elbows, bends and more

Steel sizes built to specific OD's and Ductile Iron sizes are built with range to accommodate the variances in ductile iron pipe OD's

Furnished couplings with steel Z section, high strength follower flanges

Flexi-Coat® fusion bonded epoxy finish

A bolted sleeve type coupling for joining plain end pipe of the same Dia
