MODA SUPPLY BOX 3/8 OD TLT DW NO HAM CPVC MALE

PART OAT 37898
SUPPLIER Oatey®
SUPPLIER PART # 37898
Calculating price...
QUANTITY

About this item

Oatey® 1-Valve Supply Box System, CPVC Inlet, 100 (Air)/250 (Water) psi, 250 deg F, PVC, 8 in W x 3.38 in D x 4.85 in H

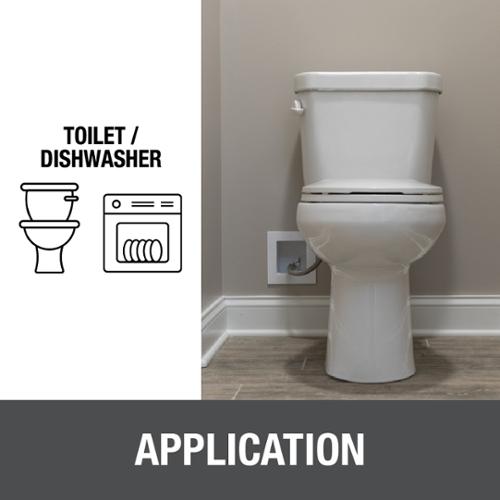

MODA™ Supply Box System is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent®Air Admittance Valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA™ Supply Box System is the ultimate solution for speed and flexibility.

ASME A112.18.1/CSA B125.1|ASSE 1010|IAPMO Listed|NSF/ANSI 61/372|PS-54|UPC® Listed
Dimensions 8 in W x 3.38 in D x 4.85 in H
Inlet Type CPVC
Material PVC
Pressure Rating 100 (Air)/250 (Water) psi
Temperature Rating 250 deg F
Brand Oatey®
Country of Origin CN
  • Infinite configuration options for easy, flexible installation

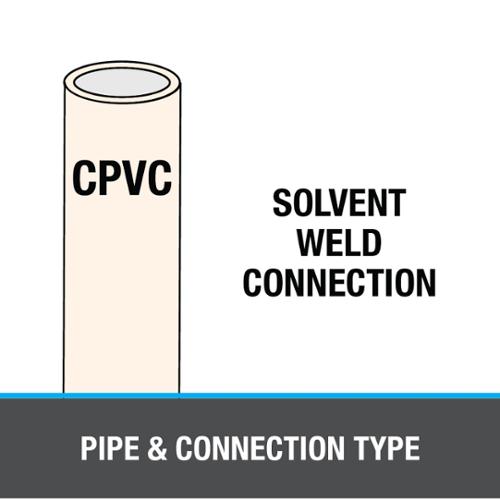

  • Connects to CPVC supply line with solvent weld connection
  • Two-piece valve design for easy repair or replacement without damaging drywall
  • Advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box

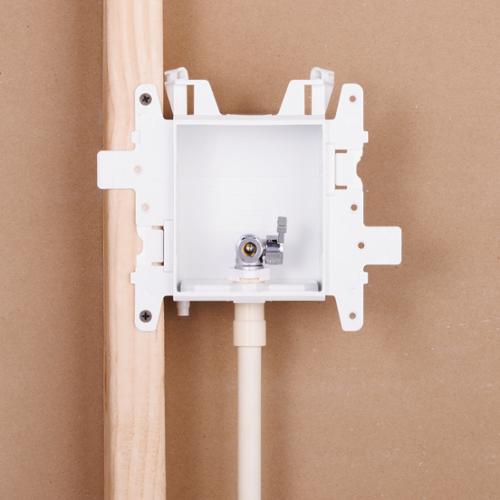

  • Contains (1) 3/8 in outer diameter compression valve pre-installed in a PVC box with interlocking wing flanges that accommodate on-stud and straddle-stud installation
  • Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers, valves rated to 150 PSI air and 250 PSI water
  • Durable PVC box construction stands up to the roughest jobsite conditions
  • Universal faceplate and brackets compatible with all MODA boxes
