MODA FIRE RATED ICE MKR BOX F1807 PEX NO HAMMER

PART OAT 37379
SUPPLIER Oatey®
SUPPLIER PART # 37379
Calculating price...
QUANTITY

About this item

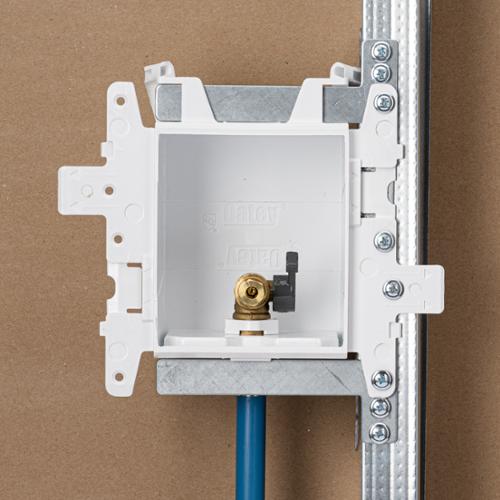

Oatey® Moda™ Ice Maker Supply Box, 1-Valve Fire-Rated, 1/4 in Outlet, PEX F1807 Inlet, Compression Outlet, 100 psi Air/250 psi Water Pressure, 250 deg F, PVC, White, 7.98 in W x 3.63 in D x 8.46 in H Dimensions, Import

Moda™ supply box system is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent® air admittance valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. Moda™ supply box system is the ultimate solution for speed and flexibility.

ASME A112.18.1/CSA B125.1|ASTM E-814|cUPC Listed|Intertek Listed|IAPMO PS-54|NSF/ANSI 61 and 372|UL 1479
Color White
Dimensions 7.98 in W x 3.63 in D x 8.46 in H
Domestic/Import Import
Inlet Type PEX F1807
Material PVC
Outlet Size 1/4 in
Outlet Type Compression
Pressure Rating 100 psi Air/250 psi Water
Temperature Rating 250 deg F
Type Fire-Rated
Brand Oatey®
Country of Origin CN
Warranty Limited

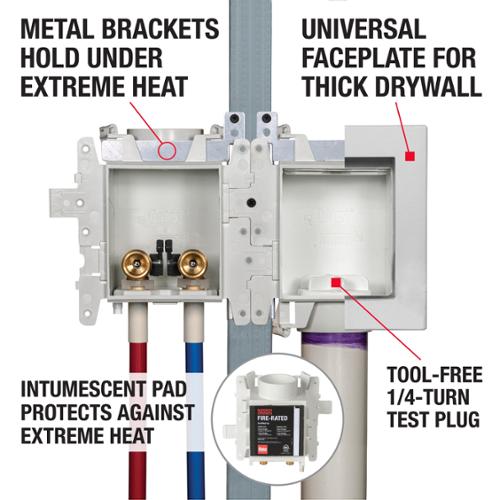

  • Using a single box platform provides significant convenience to installers, one universal faceplate is compatible with all box types
  • All boxes can snap to one another and common brackets can be used on any Moda™ supply box
  • Unique interlocking wing flanges accommodate on-stud, straddle stud and three box installations
  • Advanced snap lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
  • Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
  • Dual box design provides ideal options for stacked washer/dryers and space limited laundry rooms
  • Plumber preferred, 1/4 turn test plug with gasket provided with every drain box
  • This means no knock outs falling into drains and no tools required, Oatey® exclusive feature
  • Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
  • Two piece valve design makes valve replacement easy to repair without damaging drywall valves rated to 150 psi air and 250 psi water
  • Moda™ fire-rated system is listed to Warnock Hersey to meet ASTM E-814 and UL 1479 for both 1-hour and 2-hour wood and steel stud wall installations, Listed with Massachusetts Board of Plumbing
  • Without hammer arrestor
