MODA FIRE RATED WMOB F1807 PEX NO HAMMER

PART OAT 37351
SUPPLIER Oatey®
SUPPLIER PART # 37351
Calculating price...
QUANTITY

About this item

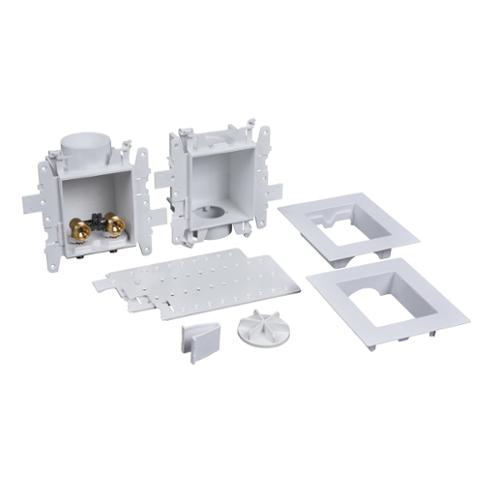

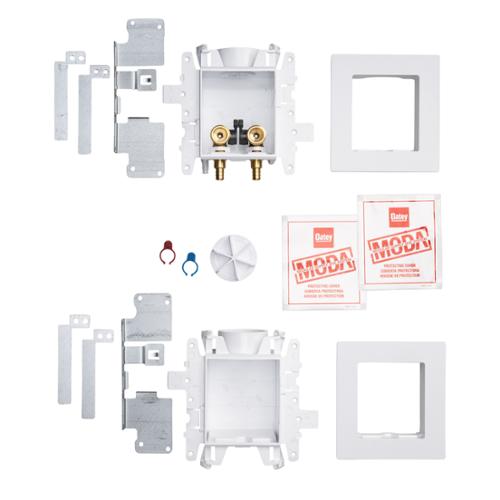

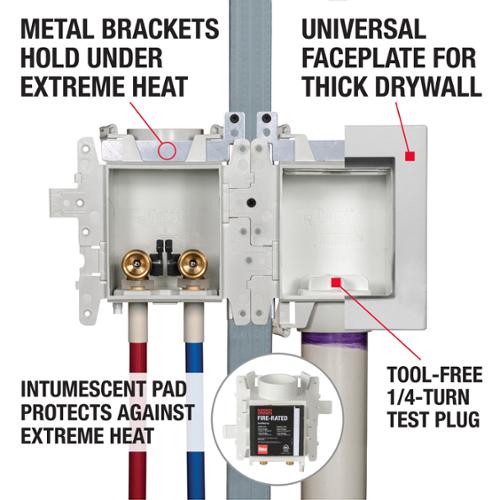

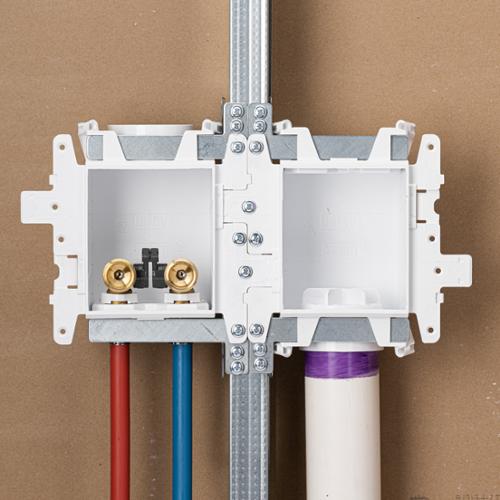

Oatey® Moda™ Washing Machine Outlet Box, Fire-Rated, 3/4 in Outlet, PEX F1807 Inlet, MNPT Outlet, 100 psi Air/250 psi Water Pressure, 250 deg F, PVC, White, 13.96 in W x 3.63 in D x 8.46 in H Dimensions, Import

Moda™ supply box system is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent® air admittance valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. Moda™ supply box system is the ultimate solution for speed and flexibility.

ASME A112.18.1/CSA B125.1|ASTM E-814|Intertek Listed|IAPMO PS-54|NSF/ANSI 61 and 372|UPC Listed|UL 1479
Color White
Dimensions 13.96 in W x 3.63 in D x 8.46 in H
Domestic/Import Import
Inlet Type PEX F1807
Material PVC
Outlet Size 3/4 in
Outlet Type MNPT
Pressure Rating 100 psi Air/250 psi Water
Temperature Rating 250 deg F
Type Fire-Rated
Brand Oatey®
Country of Origin CN
Warranty Limited
  • Infinite configuration options for easy, flexible installation
  • Connects to copper supply line with sweat connection
  • 2 in drain opening fits PVC or ABS Schedule 40 DWV pipe
  • Advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box
  • Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers, valves rated to 150 PSI air and 250 PSI water
  • Durable PVC box construction stands up to the roughest jobsite conditions
