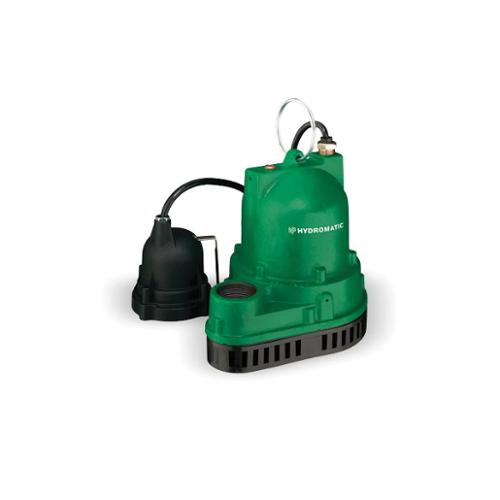

SUMP PUMP SUB 1/4 HP 1-1/2 DISCHARGE W/DIAP

PART HYD DA1 10
SUPPLIER HYDROMATIC®
SUPPLIER PART # DA1
Calculating price...
QUANTITY

About this item

HYDROMATIC® Submersible Sump Pump, 48 gpm, 1-1/2 in NPT Outlet, 25 ft Maximum Head, 3/10 hp, 115 VAC, 8 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, SJTW Cord, 1 Service Factor, Vortex Impeller, 120 deg F, NEMA A Enclosure, Cast Iron, 10-5/8 in OAH Dimensions, Domestic

Automatic operation features wide-angle float switch (W-A1), or HYDROMATIC® exclusive pressure diaphragm switch (D-A1) or HYDROMATIC® vertical, mechanical float switch (V-A1). All switches feature a piggyback plug-in arrangement that allows for simple conversion to manual operation. Cast iron body and an oil-filled motor provide superior cooling characteristics for longer pump life. Motor windings contain automatic thermal overload protection.

CSA 108|cCSAus Certified|UL 778
Amperage Rating 8 A
Cord Type SJTW
Dimensions 10-5/8 in OAH
Domestic/Import Domestic
Enclosure Type NEMA A
Flow Rate 48 gpm
Frequency Rating 60 Hz
Horsepower 3/10 hp
Impeller Type Vortex
Material Cast Iron
Maximum Head 25 ft
Motor Speed 1550 rpm
Outlet Size 1-1/2 in NPT
Phase 1
Service Factor 1
Temperature Rating 120 deg F
Voltage Rating 115 VAC
Brand HYDROMATIC®
Country of Origin US
Warranty 3 Years Limited
  • Uses carbon ceramic mechanical shaft seal
  • Single row ball-bearing construction
  • Oil filled motor with automatic reset thermal overload protection
  • Piggyback electrical plug for easy maintenance and replacement
  • Shaded pole motor
  • 38 gpm flow at 10 ft lift
  • 12 in Dia sump (diaphragm or vertical switch, 18 in Dia sump
  • 1/2 in max solid handling capacity
