RISER CLAMP COP 3-IN

PART GRHCT121-03.00

SUPPLIER Anvil®

SUPPLIER PART # 0500421086

Calculating price...

QUANTITY

About this item

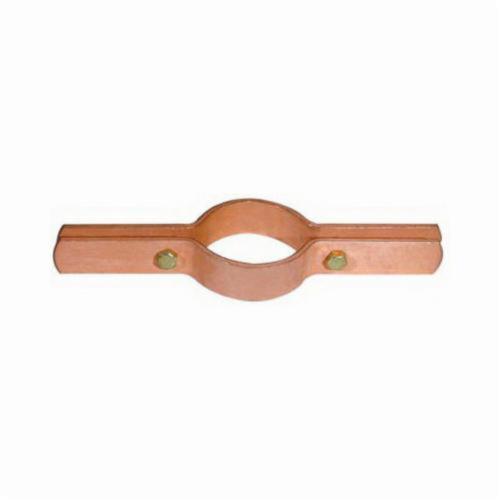

Anvil® Riser Clamp, Series: FIG CT-121, 3 in Pipe, 3/8 in Bolt Dia, 300 lb, 21 ft-lb, Carbon Steel, Copper Plated, 11-1/2 in L x 1-1/4 in W, Domestic

ANSI/MSS SP-58-69

Bolt Diameter 3/8 in

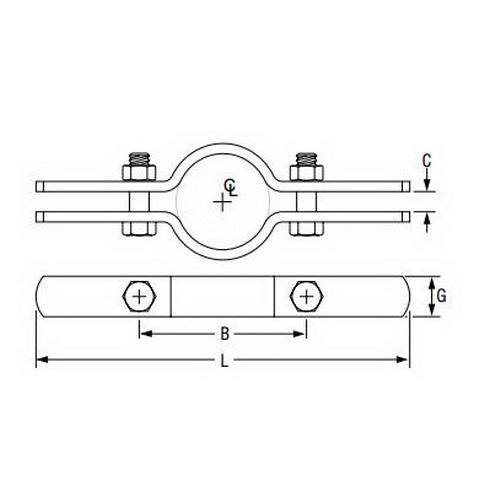

Dimensions 11-1/2 in L x 1-1/4 in W

Domestic/Import Domestic

Finish Copper Plated

Load Capacity 300 lb

Material Carbon Steel

Pipe Size 3 in

Series FIG CT-121

Torque Rating 21 ft-lb

Brand Anvil®

Country of Origin US

Designed for fastening flange of “W” and “M” beam. Bottom hole tapped to accommodate hanger rod.

Rounded ears provide greater safety for personnel

Clamp is fitted and bolted preferably below a coupling or fitting on the tubing
