RISER CLAMP COP 3/4

PART GRHCT121-00.75
SUPPLIER Anvil®
SUPPLIER PART # 0500421029
Calculating price...
QUANTITY

About this item

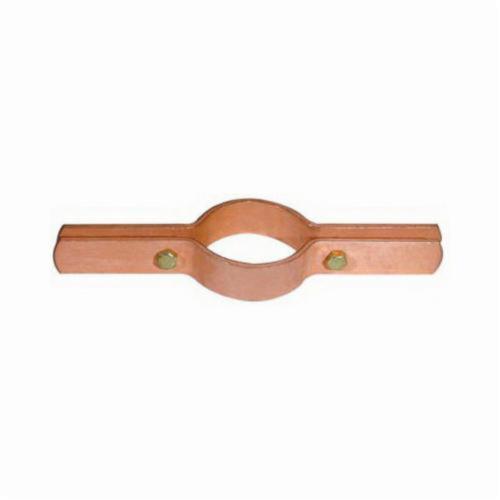

Anvil® Riser Clamp, Series: FIG CT-121, 3/4 in Pipe, 5/16 in Bolt Dia, 75 lb, 11 ft-lb, Carbon Steel, Copper Plated, 7 in L x 1 in W, Domestic

ANSI/MSS SP-58-69
Bolt Diameter 5/16 in

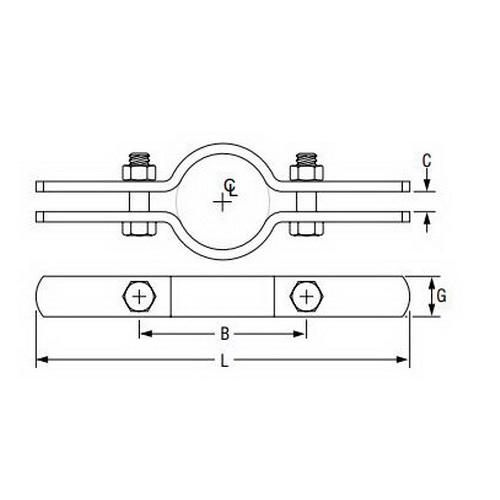

Dimensions 7 in L x 1 in W
Domestic/Import Domestic
Finish Copper Plated
Load Capacity 75 lb
Material Carbon Steel
Pipe Size 3/4 in
Series FIG CT-121
Torque Rating 11 ft-lb
Brand Anvil®
Country of Origin US
  •  Designed for fastening flange of “W” and “M” beam. Bottom hole tapped to accommodate hanger rod.
  • Rounded ears provide greater safety for personnel
  • Clamp is fitted and bolted preferably below a coupling or fitting on the tubing
