WIDE THROAT UNIVERSAL C-CLAMP BLK 3/8 INCH

PART GRH93-00.375
SUPPLIER SPF/Anvil™
SUPPLIER PART # 0560009169
Calculating price...
QUANTITY

About this item

SPF/Anvil™ C-Clamp, Universal Wide Throat, Series: FIG 93, 3/8 in Rod, 1-1/4 in Flange Thickness, 500 lb Top/250 lb Bottom lb, 60 in-lbs Torque, Ductile Iron, Plain, 450 deg F

cULus Listed|FM Approved
Finish Plain
Flange Thickness 1-1/4 in
Load Capacity 500 lb Top/250 lb Bottom lb
Material Ductile Iron
Rod Size 3/8 in
Series FIG 93
Specifications 60 in-lbs Torque
Temperature Rating 450 deg F
Type Universal Wide Throat
Brand SPF/Anvil™
Country of Origin CN
  • Internationally Manufactured. Thru tapping of the body casting permits extended adjustment of the threaded rod.

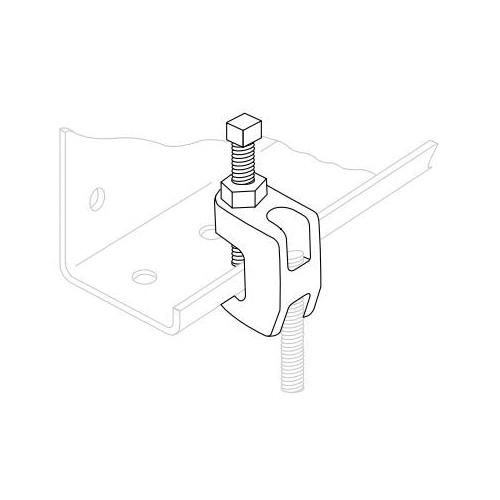

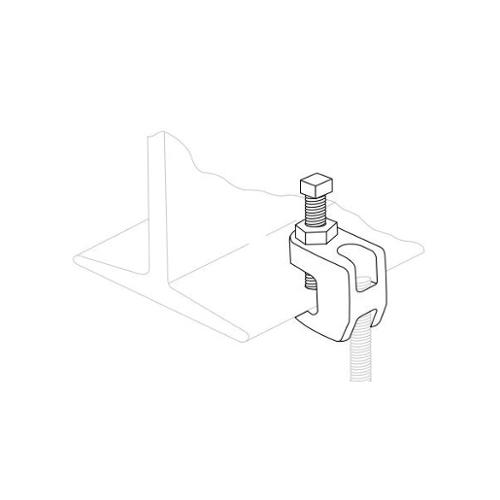

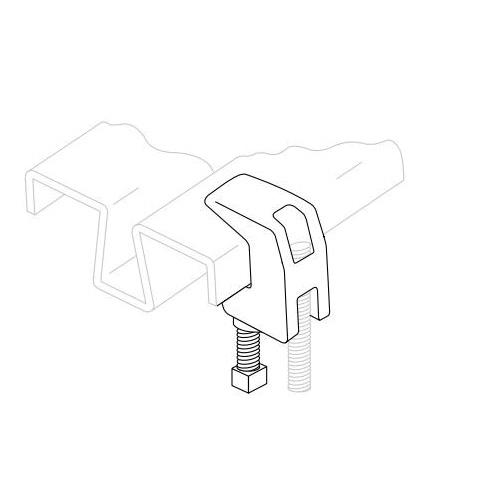

  • Attached to horizontal flanges of structural members in either the top beam or bottom beam positions
  • Secured in place by a cup-pointed set screw tightened against the flange
  • A jam nut is provided for tightening the set screw against the body casting
  • Thru tapping of the body casting permits extended adjustment of the threaded rod
  • Wider throat for attaching to flange with up to 1-1/4 in THK
  • Recommended for use under roof installations with bar joist type constructions, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 1-1/2 in
  • Hardened steel cup point set screw and locknut
