RISER CLAMP GALV 2 INCH

PART GRH261G-02.00
SUPPLIER Anvil®
SUPPLIER PART # 0500361068
Calculating price...
QUANTITY

About this item

Anvil® Pipe Riser Clamp, Series: FIG 261, 2 in Pipe, 7/16 in Bolt Dia, 300 lb, 450 deg F, 32 ft-lb, Carbon Steel, Galvanized, 10-1/4 in L x 1 in W, Domestic

ANSI/MSS SP-58/69 (Type 8)|Complies with Federal Specification A-A-1192A (Type 8)/WW-H-171-E (Type 8)|cULus Listed
Bolt Diameter 7/16 in

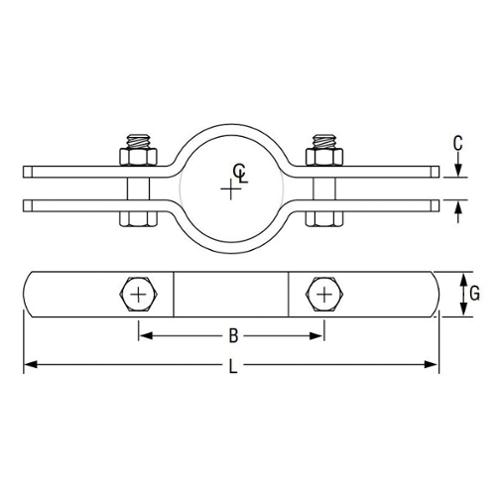

Dimensions 10-1/4 in L x 1 in W
Domestic/Import Domestic
Finish Galvanized
Load Capacity 300 lb
Material Carbon Steel
Pipe Size 2 in
Series FIG 261
Temperature Rating 450 deg F
Torque Rating 32 ft-lb
Brand Anvil®
Country of Origin US
  • For support of stationary steel pipe risers, cast iron pipe or conduit.
  • Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
  • Bolt torques should be PEX industry standards, clamp is designed for standard steel pipe OD and this must be considered in sizing the riser for other types of piping
  • This product is not intended for use with hanger rods
  • 4-1/4 in bolt to bolt distance
  • Clamp is designed for standard steel pipe OD and this must be considered in sizing the riser for other types of piping
