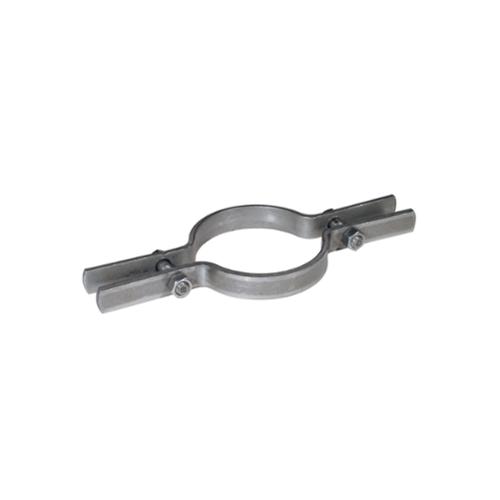

RISER CLAMP GALV 1 INCH

PART GRH261G-01.00
SUPPLIER Anvil®
SUPPLIER PART # 0500361035
Calculating price...
QUANTITY

About this item

Anvil® Riser Clamp, Series: FIG 261, 1 in Pipe, 3/8 in Bolt Dia, 220 lb, 450 deg F, 21 ft-lb, Carbon Steel, Galvanized, 8-7/8 in L x 1 in W, Domestic

A-A-1192A (Type 8)|ANSI/MSS SP-69 and MSS SP-58 (Type 8)|cULus Listed
Bolt Diameter 3/8 in

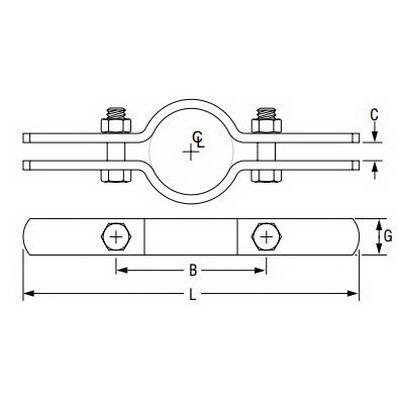

Dimensions 8-7/8 in L x 1 in W
Domestic/Import Domestic
Finish Galvanized
Load Capacity 220 lb
Material Carbon Steel
Pipe Size 1 in
Series FIG 261
Temperature Rating 450 deg F
Torque Rating 21 ft-lb
Brand Anvil®
Country of Origin US
  • For support of stationary steel pipe risers, cast iron pipe or conduit.
  • Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
  • Bolt torques should be PEX industry standards
  • Clamp is designed for standard steel pipe O.D and this must be considered in sizing the riser for other types of piping
