RISER CLAMP BLK 5-IN

PART GRH261-05.00
SUPPLIER Anvil®
SUPPLIER PART # 0500173612
Calculating price...
QUANTITY

About this item

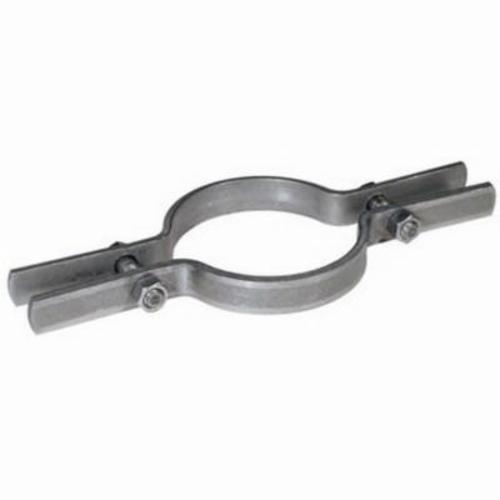

Anvil® Riser Clamp, Series: FIG 261, 5 in Pipe, 1/2 in Bolt Dia, 1500 lb, 46 ft-lb, Carbon Steel, Black Oxide, 13-3/4 in L x 1-1/2 in W, Domestic

ANSI/MSS SP-69/58|cULus Listed
Bolt Diameter 1/2 in
Dimensions 13-3/4 in L x 1-1/2 in W
Domestic/Import Domestic
Finish Black Oxide
Load Capacity 1500 lb
Material Carbon Steel
Pipe Size 5 in
Series FIG 261
Torque Rating 46 ft-lb
Brand Anvil®
Country of Origin US
  • For support of stationary steel pipe risers, cast iron pipe or conduit.
  • Clamp is fitted and bolted preferably below a coupling, hub or welded lugs on steel pipe
  • Bolt torques should be PEX industry standards
  • Clamp is designed for standard steel pipe O.D and this must be considered in sizing the riser for other types of piping
