CLEVIS HNGR ADJ GLV 2-1/2 INCH

PART GRH260G-02.50
SUPPLIER Anvil®
SUPPLIER PART # 0500359583
Calculating price...
QUANTITY

About this item

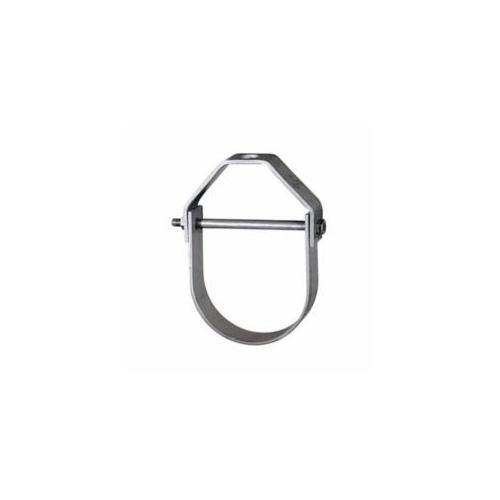

Anvil® Clevis Hanger, Adjustable, Series: FIG 260, 2-1/2 in Pipe, 1/2 in Rod, 1350 lb, Carbon Steel, Galvanized, 450 deg F

A-A-1192A (Type 1)|ANSI/MSS SP-69 and MSS SP-58 (Type 1)|cULus Listed|FM Approved|WW-H-171-E (Type 1)|UL/ULC Listed
Finish Galvanized
Load Capacity 1350 lb
Material Carbon Steel
Pipe Size 2-1/2 in
Rod Size 1/2 in
Series FIG 260
Temperature Rating 450 deg F
Type Adjustable
Brand Anvil®
Country of Origin US

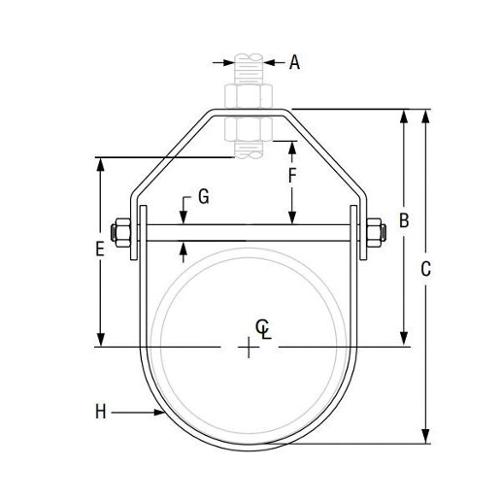

  • Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized.
  • Hanger load nut above clevis must be tightened securely to assure proper hanger performance
  • Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
  • Tighten upper nut after adjustment
  • Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
  • Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
