FS 800# OSY GATE VALVE EQ TO VOGT SW12111

PART FSVALV 800/821 SW-00.75
SUPPLIER Sharpe®
SUPPLIER PART # SV34834SW006
Calculating price...
QUANTITY

About this item

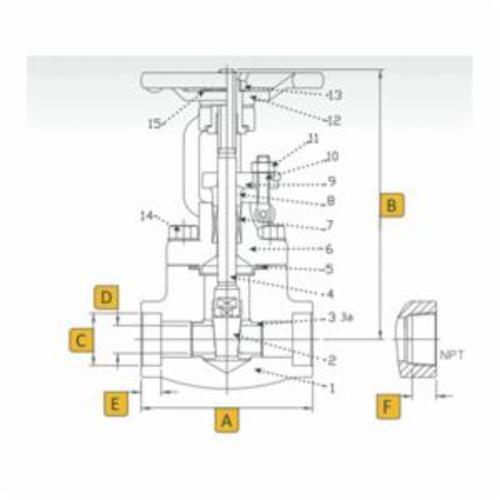

Sharpe® Gate Valve, Series: 34834, 3/4 in Nominal, Socket Welded End Style, 1975 psi Pressure, 800 lb Pressure Class, -20 to 800 deg F, Reduced Port, Handwheel Actuator, 3.58 in Inlet to Outlet Length, 6.3 in Top to Inlet Center, Steel Body, 316 Stainless Steel Trim, Stellite Seat/Graphite Packing Softgoods

ASTM A105|ANSI 16.11|API 602/598|MR-0175
Actuator Type Handwheel
Body Material Steel
End Style Socket Welded
Inlet to Outlet Length 3.58 in
Nominal Size 3/4 in
Port Type Reduced
Pressure Class 800 lb
Pressure Rating 1975 psi
Series 34834
Softgoods Material Stellite Seat/Graphite Packing
Temperature Rating -20 to 800 deg F
Top to Inlet Center 6.3 in
Trim Material 316 Stainless Steel
Brand Sharpe®
  • Bolted bonnet
  • Rising stem
  • 14 co-efficient of volume
  • Forged steel body
