IN LINE CHECK VLV BRZ 1-1/2 FIP

PART CONB 61-107-01
SUPPLIER Apollo™
SUPPLIER PART # 6110701
Calculating price...
QUANTITY

About this item

Apollo™, 6110701, In-Line Ball Cone Check Valve, Standard, Series: 61-100, 1-1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 406 deg F, 65 gpm Flow Rate, Media: Liquid/Steam, Spring-Loaded Latch-Lock Handle Actuator, 4.94 in Inlet to Outlet Length, Bronze Body, Brass/Stainless Steel Trim, 2.81 in H Dimensions, Domestic

The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.

ARRA Compliant|ASTM B16 Stem|CRN 0C11218.5C|UNS C84400 Body|PROP65: Cancer and Reproductive Harm
Actuator Type Spring-Loaded Latch-Lock Handle
Body Material Bronze
Dimensions 2.81 in H
Domestic/Import Domestic
End Style FNPT
Flow Rate 65 gpm

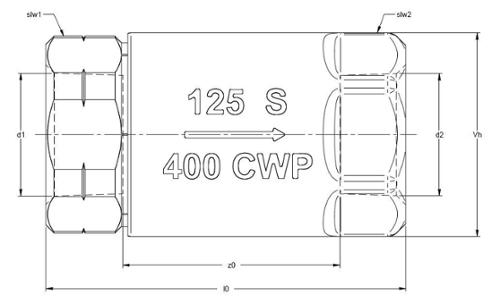

Inlet to Outlet Length 4.94 in
Media Liquid/Steam
Nominal Size 1-1/2 in
Pressure Rating 400 psi CWP
Series 61-100
Temperature Rating 406 deg F
Trim Material Brass/Stainless Steel
Type Standard
Brand Apollo™
Country of Origin US
Warranty 5 Years
  • Tight shut-off with liquid media
  • Flow straight-through design efficiency
  • RPTFE ball cone for chemical resistance
  • 100% factory tested
  • 0.5 psig cracking pressure
