PRESS RED VLV 15-75 PSI 1 NPT X UNION LF

PART CONB 36ELF-115-01T

SUPPLIER Apollo™

SUPPLIER PART # 36ELF11501T

Calculating price...

QUANTITY

About this item

Apollo™, 36ELF11501T, Pressure Reducing Valve, Series: 36ELF, 1 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-3/4 in Inlet to Outlet Length, Bronze Body, EPDM O-Ring Softgoods, 6 in H x 3-3/8 in D Dimensions, Domestic

The Apollo® Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.

ARRA Compliant|ASSE 1003|ASTM B16 Valve Body|cCSAus Certified|CSA B356|IAPMO/UPC Listed|NSF/ANSI 372 Lead-Free|NSF/ANSI 61 Water Quality|UNS C2745 Tailpiece|PROP65: Cancer and Reproductive Harm

Body Material Bronze

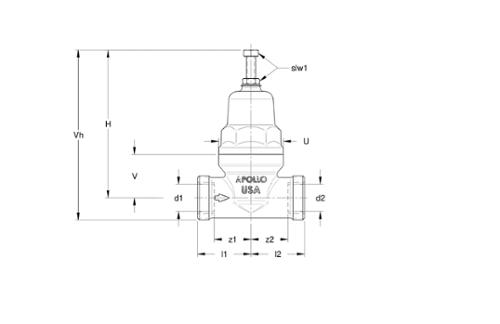

Dimensions 6 in H x 3-3/8 in D

Domestic/Import Domestic

End Style Single Union x FNPT

Inlet to Outlet Length 5-3/4 in

Media Water

Nominal Size 1 in

Pressure Range 15 to 75 psi

Series 36ELF

Softgoods Material EPDM O-Ring

Temperature Rating 33 to 180 deg F

Brand Apollo™

Country of Origin US

Warranty 5 Years

Balanced piston design

Stainless steel adjusting screw and nut

Sealed cage for vault installation

Built-In thermal expansion by-pass

Large area integral stainless steel strainer

Modular seat disc and strainer cartridge

High flow/high efficiency design

Factory tested and preset at 60 psi

Noryl cap

Stainless steel adjusting screw/nut/screen

Direct acting cartridge style regulator designed for maximum economy and efficiency

NSF grade EPDM diaphragm and seat disc

Catalog

Specification Sheet

Owners/User Manual
