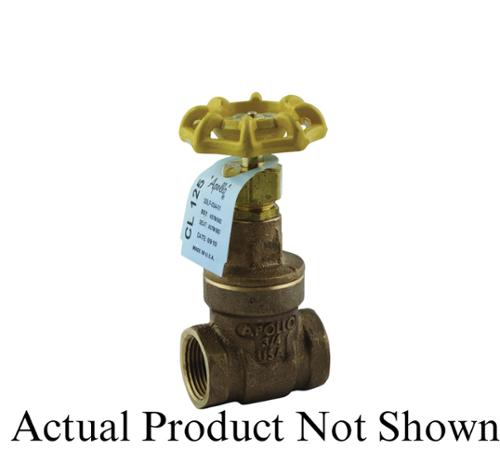

102T GATE VLV 125# BRZ BODY THD 3/8 LF

PART CONB 30LF-032-01

SUPPLIER Apollo™

SUPPLIER PART # 30LF03201

Calculating price...

QUANTITY

About this item

Apollo™, 30LF03201, Gate Valve, Non-Rising Stem, Series: 102T-LF, 3/8 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 6 gpm Flow Rate, Full Port, Media: Water, Handwheel Actuator, 4.57 in Open Top to Inlet Center, Bronze Body, Brass/Bronze Trim, Grafoil Softgoods, 1.76 in L Dimensions, Domestic

The lead free Apollo™ Model 102T-LF (30LF Series) Gate Valve provides a Made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality lead free materials.

ARRA Compliant|ASME B1.20.1|ASTM B584-C89836 Body/Disc Wedge|CSA B51 CRN 0C14667.5|Federal Public Law 111-380|MSS SP-80/139|NSF/ANSI 61/372|PROP65: Cancer and Reproductive Harm

Actuator Type Handwheel

Body Material Bronze

Dimensions 1.76 in L

Domestic/Import Domestic

End Style NPT

Flow Rate 6 gpm

Media Water

Nominal Size 3/8 in

Port Type Full

Pressure Class 125 lb

Pressure Rating 200 psi CWP

Series 102T-LF

Softgoods Material Grafoil

Temperature Rating -20 to 406 deg F

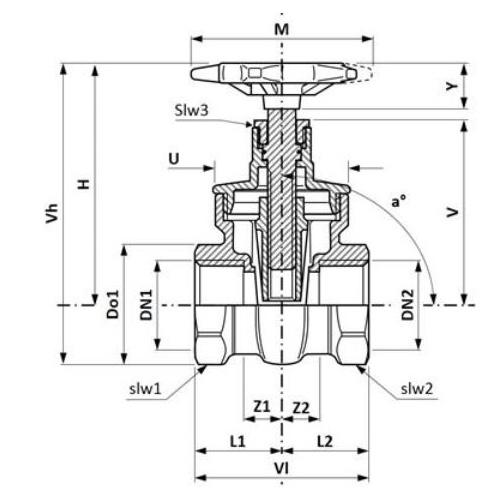

Top to Inlet Center 4.57 in Open

Trim Material Brass/Bronze

Type Non-Rising Stem

Brand Apollo™

Country of Origin US

Warranty 5 Years

Guided solid bronze disc wedge

Adjustable graphite stem packing

Screw-in bonnet

Rugged malleable iron hand wheel

Back seat protection

Brass stem/bronze disc wedge

Grafoil packing
