6 ELEC W/H UTILITY 120V 1.5KW H=16.5 D=14

PART BWC RE16U6

SUPPLIER Bradford White®

SUPPLIER PART # RE16U6-1NAL

Calculating price...

QUANTITY

About this item

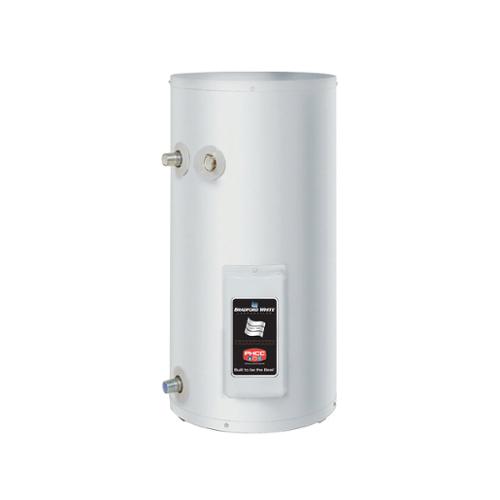

Bradford White® Electric Water Heater, Utility, Series: RE16U6, 6 gal Tank, 120 V AC, 1.5 kW Power, 1 ph, 3/4 in NPT Water Connection, 7 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 14 in Dia x 10.118 in H Dimensions, Domestic

Bradford White 6 Gallon Residential Electric Utility Water Heater. 6-Year Tank Warranty, 1.5 kW, 120 Volts, Single Phase.

AHRI Certified|CEC Listed|CSA Certified|ETL Listed|Massachusetts Approved|NSF 372|UL 1453|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

ASME Yes/No No

Dimensions 14 in Dia x 10.118 in H

Domestic/Import Domestic

Material Steel

Phase 1

Power Rating 1.5 kW

Pressure Rating 150 psi

Recovery Rate 7 gph

Series RE16U6

Tank Capacity 6 gal

Type Utility

Voltage Rating 120 V AC

Water Connection 3/4 in NPT

Brand Bradford White®

Country of Origin US

Warranty 6 Years Limited on Tank/6 Years Limited on Component Parts

Fully automatic thermostat control: Fast acting surface-mount thermostat for automatic temperature control

Factory installed sensitive manual reset energy cut-off for safety to prevent overheating

Direct heat transfer with a single immersed element: Transfers heat directly and efficiently to the water

Vitraglas® lining

Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F

1 in non-CFC foam insulation: covers the sides and top of the tank, reducing the amount of heat loss

Results in less energy consumption, improved operation efficiencies and jacket rigidity

Water connections: 3/4 in NPT factory-supplied true dielectric fittings extend water heater life

Located on the side for easier installation (Fittings packaged separately inside carton)

Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service

Design evaluated by ETL in accordance with Part 280.707(d) of HUD mobile home construction and safety standards for energy efficiency

Alternate top water connections

Non-simultaneous operation

Instruction/Installation Manual

Service Manual

Specification Sheet

Warranty Information

Line Drawing
