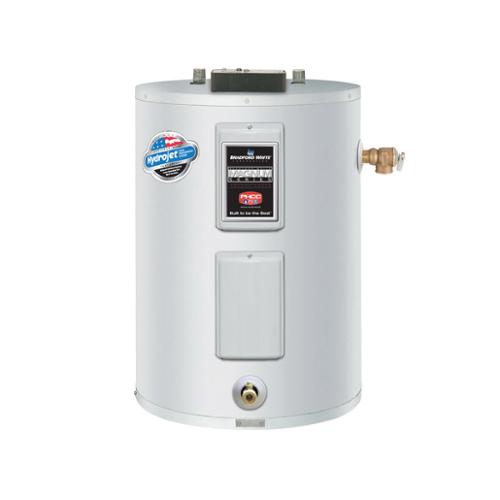

19 GAL LD COMM ELEC W/H 4.5/3.5KW 240/208V D=18

PART BWC LE120L3-3NCWW
SUPPLIER Bradford White®
SUPPLIER PART # LE120L3-3NCWW
Calculating price...
QUANTITY

About this item

Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Lowboy, Series: LE120L3-3, 19 gal Tank, 208 V AC, 4.5 kW Power, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 18 in Dia x 26 in H Dimensions, Domestic

Bradford White ElectriFLEX LD® (Light-Duty) 19 Gallon Commercial Electric Lowboy Water Heater. 3-Year Tank Warranty, 4.5/3.5 kW, 240/208 Volts, Three Phase. The Bradford White ElectriFLEX® Series offers Field Convertibility for kW, Voltage, and Phase.

AHRI Certified|ASHRAE 90.1b|CEC Listed|cETLus Listed|CSA Certified|CSAE Certified|Massachusetts Approved|NSF 372|UL 1453|UL 174|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
ASME Yes/No No
Dimensions 18 in Dia x 26 in H
Domestic/Import Domestic
Heating Element Screw-In Copper
Material Steel
Phase 3
Power Rating 4.5 kW
Pressure Rating 150 psi
Recovery Rate 18 gph
Series LE120L3-3
Tank Capacity 19 gal
Type Light Duty Lowboy
Voltage Rating 208 V AC
Water Connection 3/4 in NPT
Brand Bradford White®
Country of Origin US
Warranty 3 Years Limited on Tank/1 Year Limited on Component Parts
  • Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
  • Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
  • Factory installed Hydrojet® sediment reduction system
  • Vitraglas® lining
  • Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
  • Insulation system: 1 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
  • Results in less energy consumption, improved operation efficiencies and jacket rigidity
  • Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
  • Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
  • Protective magnesium rod: Provides added protection against corrosion for long trouble free service
  • Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
  • Field convertible: Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
  • Lowboy models are ideal for installations where space is at a premium and are perfect for tight installations such as a closet or under a counter
  • Copper screw type immersion element
  • Hydrojet® total performance systemNon-simultaneous
