Home Water Heaters Commercial Commercial Gas Tank Water Heaters 80 GAL GAS COMM WTR HTR DHH-71-7/8:D-28:V-6

80 GAL GAS COMM WTR HTR DHH-71-7/8:D-28:V-6

PART BWC D-80T-199-3N
SUPPLIER Bradford White®
SUPPLIER PART # D80T1993N
Calculating price...
QUANTITY

About this item

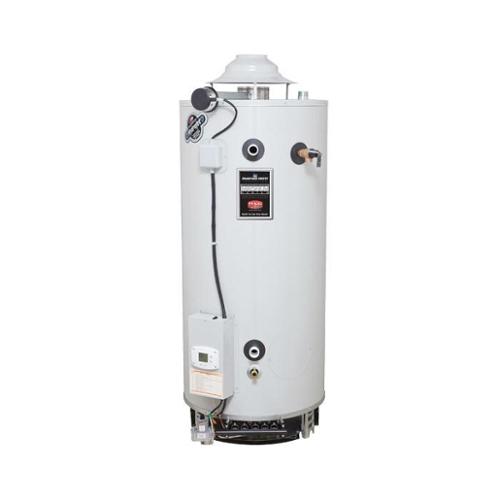

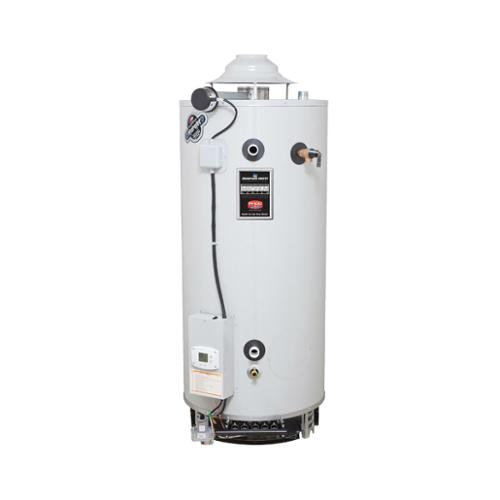

Ensure reliable hot water supply with this 80-gallon natural gas water heater, featuring a robust heating capacity of 199,999 Btu/hr. The unit is equipped with a vitraglas® lining that protects the tank from corrosion, enhancing its longevity. An atmospheric vent allows for efficient exhaust management, making it suitable for various commercial applications. With a 6-volt control voltage, this water heater offers straightforward operation and maintenance.
ASME Yes/No No
Dimensions 28-1/4 in Dia x 32-1/2 in D x 76-3/8 in H
Domestic/Import Domestic
Energy Efficiency 80 %
Finish Vitraglas®
Fuel Type Natural Gas
Gas Connection 3/4 in
Heating Capacity 199999 Btu/hr
Ignition Type Electronic
Material Steel
Pressure Rating 150 psi
Recovery Rate 485 gph at 40 deg F Rise
Tank Capacity 80 gal
Temperature Rating 180 deg F
Type Flue Damper
Ultra Low NOx No
Vent Size 6 in
Vent Type Atmospheric
Water Connection 1-1/2 in
Brand Bradford White®
Country of Origin US
Warranty 3 Years Limited on Tank/1 Year Limited on Component Parts
  • ICON HD™ - Intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display
  • Operation mode - Two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180 deg F, and adjusting the degree setting
  • Service mode - Eight different digitally displayed service modes can be easily cycled through by pressing the select button
  • Electronic ignition - High voltage, low current electricity is sent to the pilot electrode initiating a spark to ignite the pilot gas
  • Automatic flue damper
  • Factory installed Hydrojet® sediment reduction system - Cold water inlet sediment reducing device helps prevent sediment build up in the tank
  • Vitraglas® lining
  • Insulation system - Non-CFC foam covers the sides and top of the tank, reducing heat loss
  • Water connections - 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
  • Hand hole cleanout
  • E.C.O - An automatic re-set energy cut off (E.C.O.) shuts off all gas in event of an overheat condition
  • Protective magnesium rod - Provides added protection against corrosion for long trouble-free service
  • Durable tamper proof design low restriction brass drain valve
  • 4.7 in WC
