Home HUSKY HD2000 NH CPLG 2 WHITE

HUSKY HD2000 NH CPLG 2 WHITE

PART ANC 2006
SUPPLIER Anaco-Husky
SUPPLIER PART # 2006
Calculating price...
QUANTITY

About this item

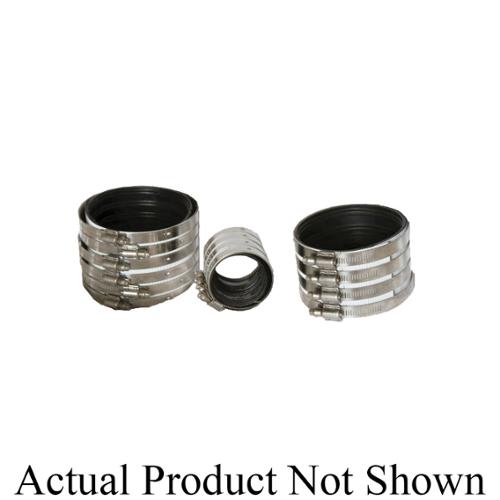

Anaco-Husky Pipe Coupling, Series: Husky® HD 2000, Fitting/Connector Type: Coupling, 2 in Nominal, 5/16 in Hex, 304 Stainless Steel, 3 in W, Domestic

The Husky HD 2000 Coupling has been engineered by Annaco to provide a heavy-duty, all stainless steel coupling, balancing the desire for a more rigid joint with the need to provide a superior positive seal, which can accommodate possible disparities in the No-Hub pipe and fittings. This has been accomplished by manufacturing our coupling with a heavy-duty corrugated shield of sufficient width to accommodate additional surface-bearing sealing clamps.

ASTM C 564/C 1540|CSA B 602|FM 1680 Class 1|IAPMO File 6726
Dimensions 3 in W
Domestic/Import Domestic
Fitting/Connector Type Coupling
Hex Size 5/16 in
Material 304 Stainless Steel
Nominal Size 2 in
Series Husky® HD 2000
Brand Anaco-Husky
Country of Origin US
  • A heavy duty stainless steel coupling for joining no hub cast iron soil pipe and fittings
  • Extra width for lateral support
  • Additional sealing clamps for better load distribution and a more positive seal
  • 304 stainless steel heavy duty construction
  • Shield color coated white
  • Type 304 AISI stainless steel clamp and corrugated shield
  • Polychloroprene (neoprene) gasket
  • Designed to be installed with a pre-set torque wrench calibrated at 80 in-lb to accommodate the 305 stainless steel 5/16 in hex head screw
  • Consist of a 3 in wide corrugated 304 stainless steel shield in conjunction with four (4) stainless steel clamps, secured in place by means of an affixed and "floating" eyelet to allow the clamp "travel" during tightening
  • 4 straps
  • 0.010 in Thk shield
  • Without hub
